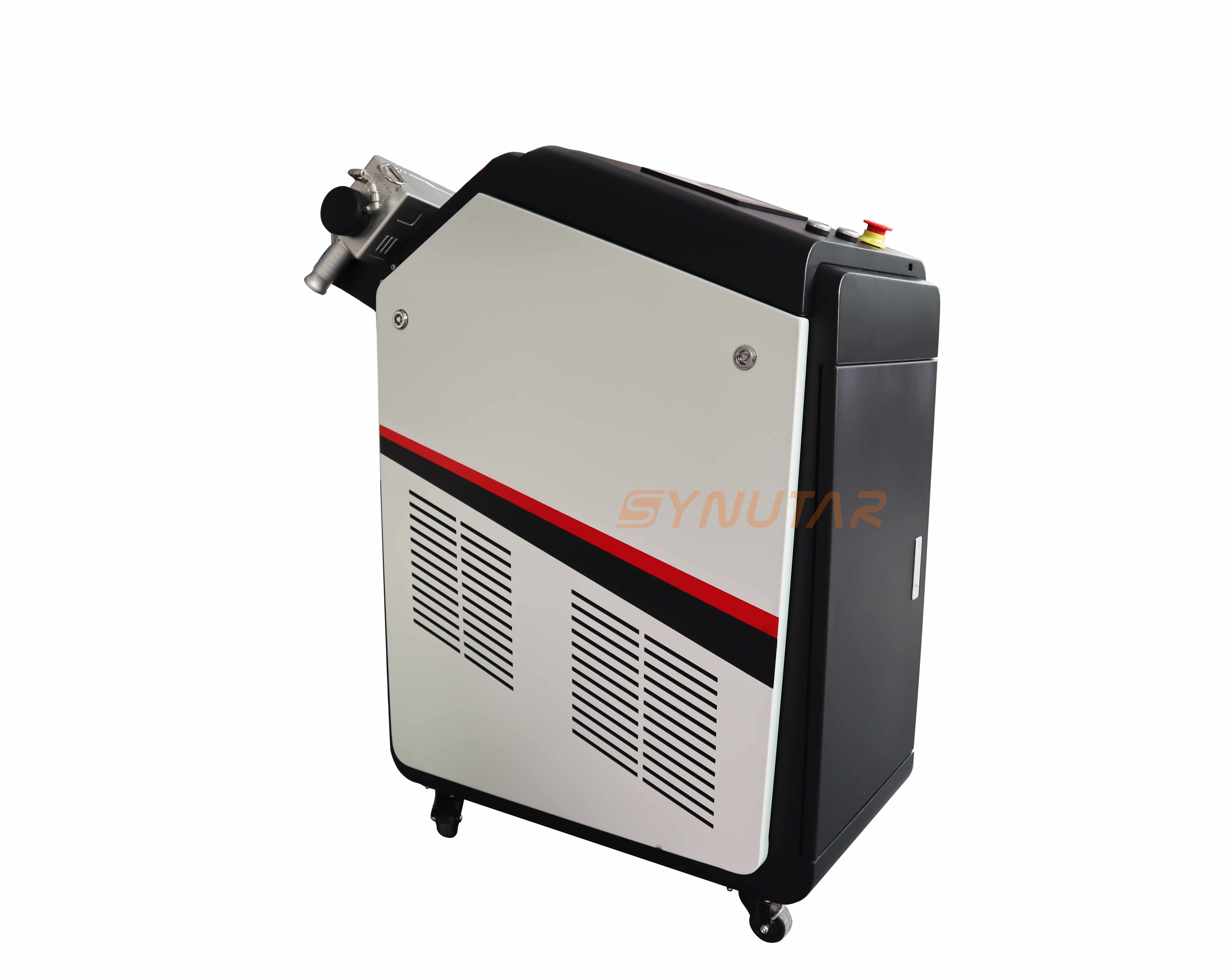

High-precision Pulsed Laser Cleaning Machine 1-50kHz Pulse Frequency
Product Description:
Our Pulsed Laser Cleaning Machine is a handheld laser cleaning machine designed for metal surface cleaning. It is ideal for removing rust, paint, oxide layer, welding slag, etc. from metal surface. It is equipped with a 500W power consumption, touch screen control system, and 1-50kHz pulse frequency. Our laser cleaning machine adopts 1064nm laser wavelength and has a working area of 100mm*100mm. It is easy to operate and can provide fast, precise and efficient cleaning. It is widely used in industrial maintenance, manufacturing, automotive industry and other fields. Our laser cleaning system is the optimal choice for efficient metal surface cleaning.
Features:
- Product Name: Pulsed Laser Cleaning Machine
- Laser Source: Fiber Laser
- Scanning System: Galvanometer Scanning System
- Pulse Width: 1-20ns
- Working Area: 100mm*100mm
- Power Supply: 220V/50Hz
- Features: Laser Rust Removal Machine, Handheld laser cleaning machine
Technical Parameters:
| Parameter |
Value |
| Product Name |
Pulsed Laser Cleaning Machine |
| Dimension |
1000mm*500mm*1200mm |
| Scanning System |
Galvanometer Scanning System |
| Working Area |
100mm*100mm |
| Pulse Frequency |
1-50kHz |
| Power Consumption |
500W |
| Laser Wavelength |
1064nm |
| Power Supply |
220V/50Hz |
| Scanning Speed |
0-6000mm/s |
| Pulse Width |
1-20ns |
Applications:
The SYNUTAR Pulsed Laser Cleaning Machine, with its model numbers SY-PL100/PL120/PL200/PL300/PL500, is a metal laser cleaner, laser rust removal machine and handheld laser cleaning machine. It is made in China with the latest PC control system, and has an average power consumption of 500W. It features a scanning speed ranging from 0-6000mm/s, and a working area of 100mm*100mm. This Pulsed Laser Cleaning Machine is ideal for the removal of rust, oxide, paint and other deposits from the surface of metal and other materials, making it widely used in industries such as aerospace, automotive, shipbuilding, petrochemical, energy, and more.

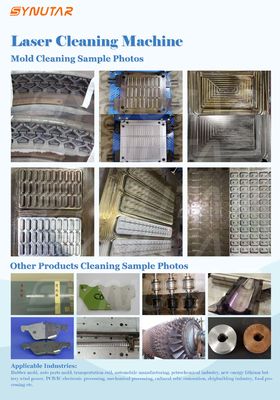

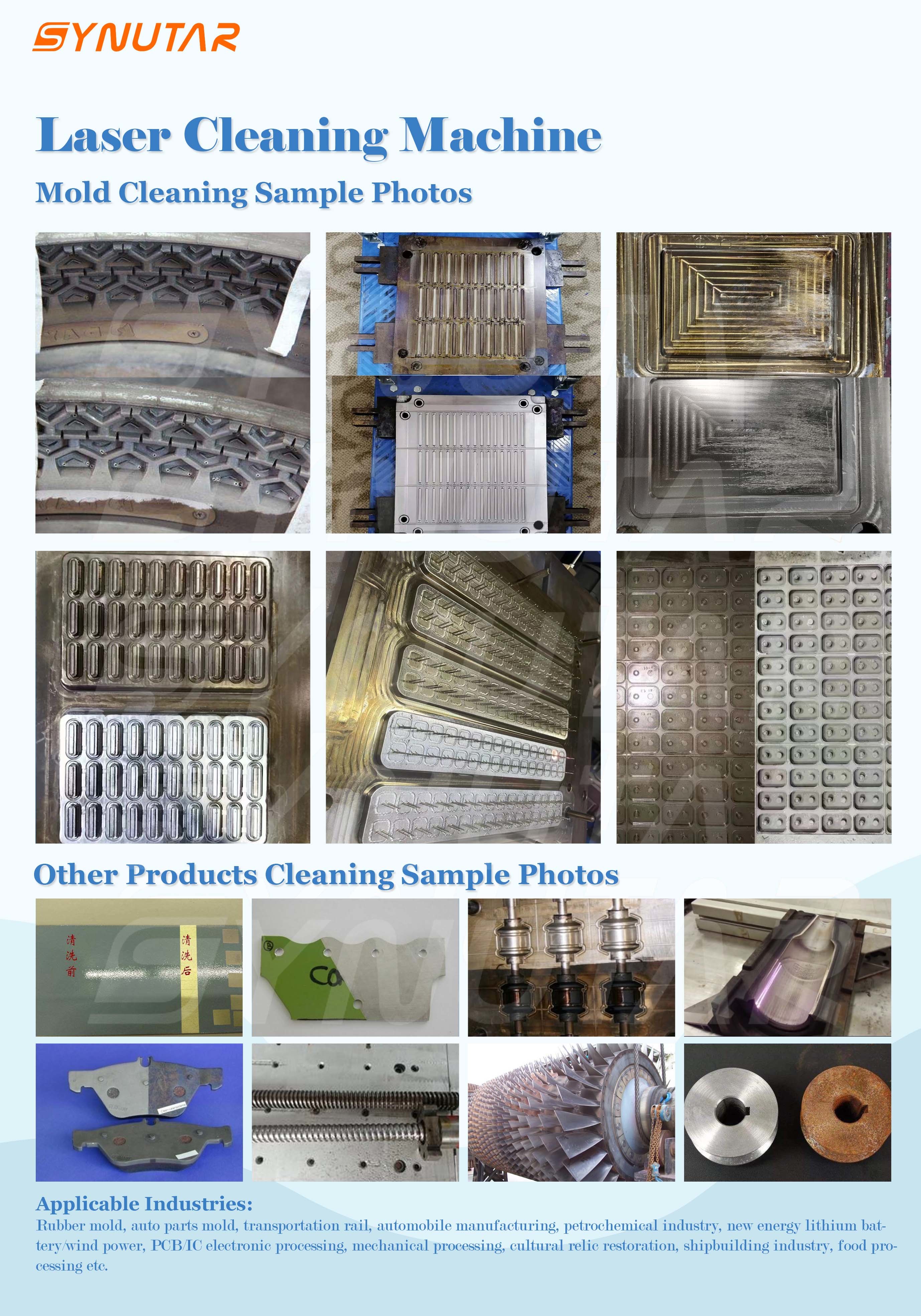

Sample Photos:
Support and Services:
Pulsed Laser Cleaning Machine Technical Support and Service
Our team provides technical support and service for the Pulsed Laser Cleaning Machine. We are available to assist with any questions or concerns, as well as provide guidance for setup and operation.
We offer a wide range of services for the Pulsed Laser Cleaning Machine, including:
- Troubleshooting technical issues
- Providing software updates
- Providing guidance on laser safety
- Providing replacement parts and accessories
If you have any questions or concerns about the Pulsed Laser Cleaning Machine, please contact our team for assistance.
Packing and Shipping:
Packaging and Shipping for Pulsed Laser Cleaning Machine
The packaging and shipping for the Pulsed Laser Cleaning Machine includes the following steps:
- The machine and its accessories are carefully packed in a sturdy cardboard box.
- The box is filled with foam material for further protection.
- The box is sealed and labeled with the machine's specifications.
- The box is then ready for shipment.
- The box is shipped via a reliable courier service and tracked for safe delivery.
FAQ:
Q&A about SYNUTAR Pulsed Laser Cleaning Machines
Q1: What is the brand of the Pulsed Laser Cleaning Machine?
A1: The brand of the Pulsed Laser Cleaning Machine is SYNUTAR.
Q2: What are the model numbers of the Pulsed Laser Cleaning Machine?
A2: The model numbers of the Pulsed Laser Cleaning Machine are SY-PL100/PL120/PL200/PL300/PL500.
Q3: Where is the Pulsed Laser Cleaning Machine made?
A3: The Pulsed Laser Cleaning Machine is made in China.
Q4: What are the applications of the Pulsed Laser Cleaning Machine?
A4: The Pulsed Laser Cleaning Machine can be used for surface cleaning, surface modification and surface activation for various materials.
Q5: What are the advantages of the Pulsed Laser Cleaning Machine?
A5: The advantages of the Pulsed Laser Cleaning Machine include non-contact process, no secondary pollution, high cleaning efficiency, no mechanical damage, flexible positioning, etc.
