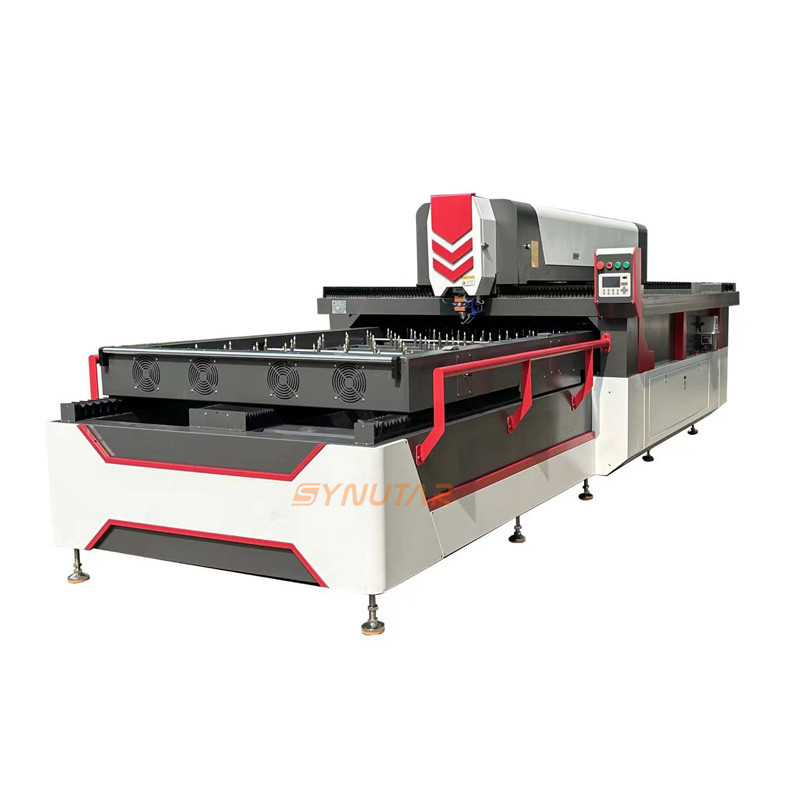

Dieboard CO2 Fiber Laser Cutting Machine 2000W / 1500W / 3000W

Dieboard CO2 Laser Cutting Machine 600W/1000W/1500W/2000W/3000W

Machine/assistant accessories features:

Motor System: Panasonic Servo Motor to guarantee high precision cutting

Drive System: HIWIN Linear guiderail + ball screw to guarantee high precision cutting and table moving

1. External light path system: USA II-VI optical lens and reflector mirror to guarantee strong laser focus
2. Cooling system: China Guangzhou S&A CW-6100 Industrial Chiller water cooling
3. Exhausting system: one set 1100watt exhaust fans to carry out smoking
4. Laser control system: fully English, Russian, Spanish language laser software, PC control.
5. Laser power Devices: China brand. Fixed laser path, ensure the stability of the optical path
6. Laser cutting head coming with auto touching following system, adapt to the jagged materials.
7. High temperature heat treatment working table and large gantry milling processing.
8. Stable machine design, high strength of machine bed, long-year working Low consumption of voltage about 5-7kilowatt per hour.

Characteristics of machine:

1. Adopt single head cutting method, greatly improving the speed, and so more uniform kerf width.
2. Low power consumption: an external power source 220V, and out-of-the-box without boot wait time, laser knife mold cutting machine running cost less than 5 dollars per an hour.
3. Easy operation, simple and clear knife slit adjustment technology, cutting software and AutoCAD, CorelDraw, Adobe photoshop can compatible, edit path handy operation.
4. High stability: the fix optical path structure, adopt Taiwan import original guide rail X,Y axis, two sides is imported precision ball screw drive, to guarantee the precision and stability of the transmission.
5. Long durability: laser reflection focus lens in U.S.A imported and greatly reduce the laser power attenuation in the transmission process.
6. The enclosed thermostat industrial laser cooling system, the optical path of steady temperature control, greatly extend the service life of the laser tube.
7. Application: one time cutting 15mm, 18mm, 20mm wood die board, adhensive MDF, plywood, acrylic etc.

Technical Specifications:
